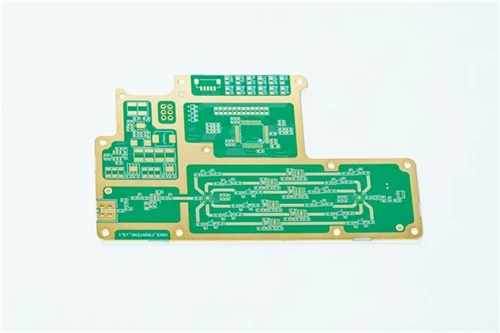

Industrial control applications constantly face high current, high load, and complex operating conditions, placing stringent demands on power transmission carriers. High-reliability thick copper power supply boards, with their superior current carrying capacity, heat dissipation, and structural stability, have become core components of industrial control power systems. Customized solutions can precisely match the power and environmental requirements of different devices, ensuring long-term stable operation.
I. Thick Copper Power Supply Board: The Core Carrier for High-Power Industrial Control Scenarios
Thick copper power supply boards use thickened copper foil as the conductive body, combined with a high-heat-resistant substrate and precision manufacturing process. They possess high current carrying capacity and efficient heat dissipation capabilities that are difficult to achieve with ordinary circuit boards, making them suitable for high-power modules such as industrial power supplies, frequency converters, energy storage conversion, and power control.
Copper layer thickness covers standard to heavy-duty specifications and can be flexibly configured according to current ratings, reducing line losses, minimizing temperature rise, and improving power supply circuit stability.
The substrate uses high Tg, high heat resistance, and high dimensional stability materials, suitable for long-term high-temperature and continuous operation, resisting environmental deformation and stress effects.
The overall structure balances electrical conductivity, thermal conductivity, and mechanical strength, maintaining consistent performance in environments with high vibration, dust, and temperature variations, thus reducing the risk of failure.
II. Core Advantages of Customization: Dedicated Solutions for Industrial Control Scenarios
Customized thick copper power boards are designed around actual industrial control conditions, with matching from materials and structure to manufacturing processes, achieving a balance between reliability and economy.
Power and structural customization determines copper thickness, number of layers, board thickness, and overall dimensions based on load current, number of circuits, and installation space, supporting large-size processing and multi-layer structures to meet the needs of centralized and distributed power units.
Customized manufacturing precision employs fine circuit fabrication, high-precision lamination, and back-drilling processes to ensure consistent alignment and conductivity between layers, optimizing signal integrity and power transmission efficiency.
Customized performance indicators target key performance indicators such as withstand voltage, insulation, impedance, and mechanical strength, matching industrial control equipment safety regulations and long-term operating standards to enhance system robustness.
III. Key Processes and Equipment: Ensuring High Reliability and Quality
Stable processes and advanced equipment are the foundation of high-quality thick copper power boards, with a closed-loop control system implemented from processing to testing.
Automated electroplating, precision drilling, plasma hole finishing, and high-pressure forming equipment ensure uniform thick copper patterns, intact hole walls, and robust structures, adapting to high aspect ratios and thick board processing.
Multi-dimensional testing, including flying probe testing, AOI inspection, impedance testing, and hole copper and plating thickness testing, comprehensively verifies conductivity, insulation, dimensional and performance consistency, eliminating hidden defects.
Following IPC standards and the PDCA quality closed loop, combined with the ISO9001 system, achieves full traceability from material input to shipment, ensuring batch stability.
IV. Environmental Protection and Compliance: Green Manufacturing Safeguards Long-Term Application
Industrial control equipment is designed for long-term service; green environmental protection and compliance are equally crucial.
Using environmentally friendly substrates and processes meets RoHS and other environmental requirements, reducing the impact on the on-site environment and adapting to clean production scenarios.
With clean production certification and environmental qualifications, we have achieved advanced industry levels in energy consumption, emissions, and resource utilization, helping users upgrade to green and intelligent manufacturing.
V. Technological Accumulation and Scenario Value
We have long focused on the R&D of industrial control PCB manufacturing, using a professional team and multiple patented technologies to support the customized implementation of thick copper power boards, bringing clear application value:
Low loss and low heat generation in high-current circuits improve power conversion efficiency and equipment endurance.
High structural strength and dimensional stability adapt to harsh industrial control environments, extending replacement cycles.
Customized rapid response shortens development cycles, reduces matching costs, and enhances the overall competitiveness of equipment.
Customized high-reliability thick copper power boards for industrial control, with thick copper technology as the core, precision manufacturing processes as a guarantee, and scenario-driven requirements, provide solid support for high-power, high-reliability, and long-life industrial control power supply systems, serving as a key foundational component for the stable operation of industrial equipment.
