Embedded Resistor PCB

An Embedded Resistor PCB (Tube machine high frequency PCB) is an advanced printed circuit board that integrates thin-film resistor elements directly within the internal dielectric layers, formed by vacuum sputtering/etching processes (e.g., tantalum nitride TaN or nickel-chromium NiCr). It eliminates surface-mounted devices (SMDs) to enhance circuit density, high-frequency performance, and reliability.
Core Characteristics:
1. Embedded Structure

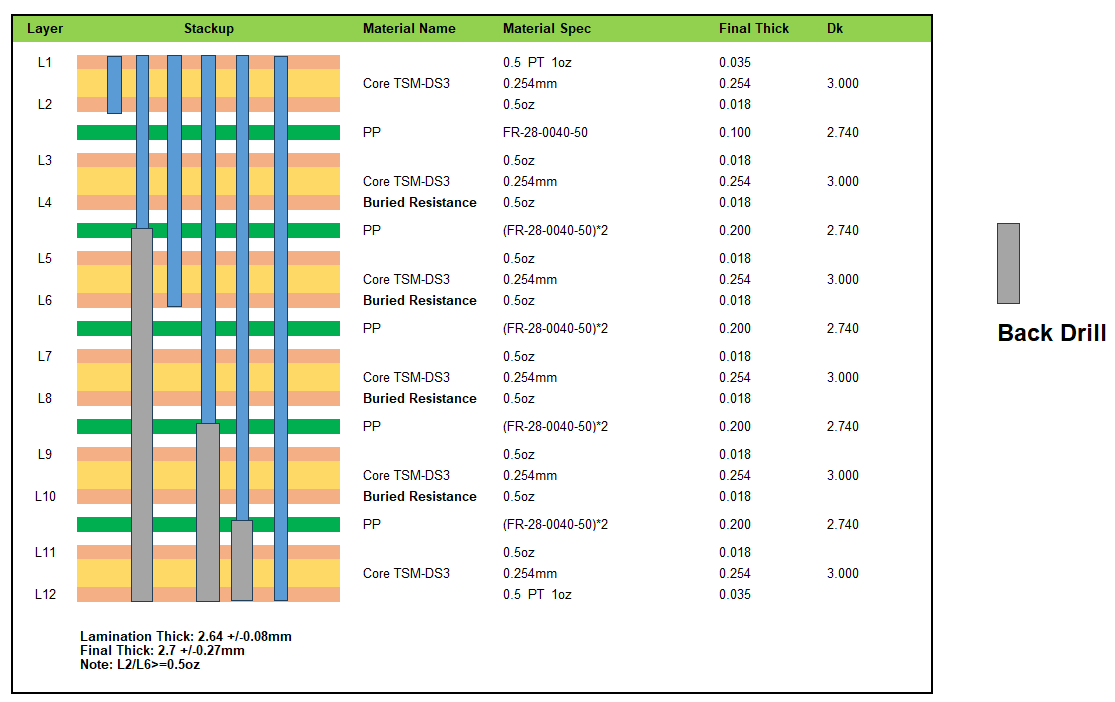

Resistor layers between L2 to Ln-1 (non-surface)
Thickness: 0.1~5μm thin-film resistors
2. Material System
Resistive Films: TaN (25~250Ω/sq), NiCr (50~300Ω/sq)
Dielectrics: FR-4, polyimide, or HF laminates (e.g., Rogers 4350B, TSM-DS3)
3. Precision Manufacturing
Laser trimming tolerance: ±0.5% ~ ±1%
Resistance range: 10Ω~100kΩ per layer

Send Inquiry

Product Characteristics

Precision Resistive Properties

Ultra-thin Films: 0.1~5μm (TaN/NiCr), Sheet resistance 25-300Ω/sq
Laser Trimming: ±0.5% (std), ±0.1% (high-precision)
TCR: ±50ppm/℃ (NiCr), ±100ppm/℃ (TaN)

High-Frequency Advantages

Near-zero Parasitics: Inductance <0.05nH, Capacitance <0.01pF (@10GHz)
Seamless Interconnect: Impedance discontinuity <3%
Loss Reduction: 0.3dB/inch lower than SMD @40GHz

3D Integration Architecture

Any-layer Embedding: Resistors in L2 to Ln-1 dielectric layers
Micro-via Connection: 25μm laser vias to resistor terminations
Topology Freedom: Curved resistor layouts (e.g. antenna matching)

Extreme Environment Reliability

Passes 3000x thermal cycles (-65°C~150°C per IPC-6012 Class 3)
>2000hrs at 85°C/85% RH (resistance drift <1%)
Vibration resistant: 50G acceleration (no cracking)

Product Application Field

5G/6G mmWave Systems

AAU Matching Networks: 50Ω termination under microstrip (loss ↓0.4dB @28GHz)
Beamforming ICs: Bias resistors in T/R modules (size ↓60%)

High-Speed Digital

DDR5 DIMMs: On-die termination (ODT) for 6400MT/s (jitter ↓35%)
Server VRMs: PMIC voltage dividers (response time 10ns)

Automotive Electronics

77GHz Radar: Antenna matching resistors (TCR＜100ppm/℃)
BMS: Current sense resistors (0.1% precision @150°C)

Medical Implants

Pacemakers: Micro voltage dividers (size＜5mm³, lifespan＞10yrs)
Neurostimulators: Tissue-impedance matching layers

Aerospace

Satellite AESA: Radiation-hardened terminations (failure rate ↓90%)
Rocket Avionics: Shock-resistant networks (50G acceleration certified)

IoT Sensors

Pressure Sensors: Full-bridge resistors (3×3mm, 0.1mW)
