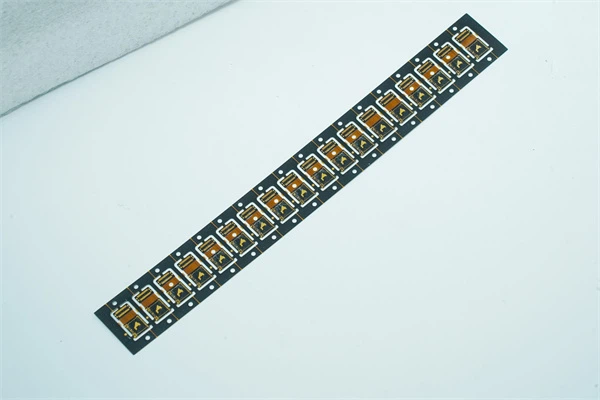

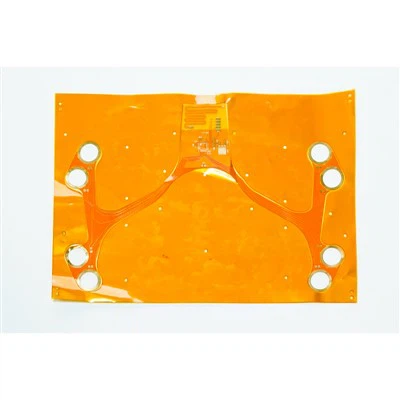

Top-Bottom Asymmetric Rigid-Flex PCB

A Top-Bottom Asymmetric Rigid-Flex PCB is a 3D heterogeneous integrated circuit board characterized by asymmetric rigid-flex layering in the Z-axis, where dissimilar materials, thicknesses, and functions are engineered on different layers. Key designs include:
1. Functional Zoning: Top rigid zone (e.g., high-frequency ceramic) mounts high-speed ICs, bottom flex zone (ultra-thin PI) enables dynamic bending;
2. Asymmetric Stackup: >50% thickness differential between layers (e.g., 0.8mm FR4 top vs 0.1mm PI bottom);
3. Cross-Layer Interconnect: Laser microvias (<60μm) penetrate rigid-flex interfaces for inter-zone routing;
4. Mechanical Decoupling: Flexible bottom absorbs shock/vibration, rigid top ensures component stability.
Used in applications requiring simultaneous high-frequency processing and mechanical compliance, such as phased array T/R modules, foldable drone controllers, and implantable medical devices.

Send Inquiry

Product Characteristics

Category	Feature	Details
1. Structure Design	Z-Axis Heterogeneous Stackup	Top rigid zone (0.5–2.0 mm) vs bottom flex zone (0.05–0.2 mm), >50% thickness delta
	Vertical Functional Zoning	Top mounts BGAs/HF ICs, bottom enables bending/thermal management
	Asymmetric Interconnect	Laser microvias (≤60 μm) through interfaces, 15:1 aspect ratio
2. Electrical Performance	Cross-Layer Signal Integrity	±3% impedance tolerance @ 40 GHz (hybrid Dk control)
	HF Isolation	0.1 mm spacing between top ground & bottom signal layers, crosstalk < −45 dB
	Low-Loss Transmission	< 0.15 dB/cm @ 10 GHz in flex bottom (LCP substrate)
3. Mechanical Properties	Mechanical Decoupling	Top component stress < 10 MPa when bottom flex bends at ≤0.3 mm radius
	Shock Resistance	Bottom layer absorbs 80% vibration energy (damped cavity fill)
	CTE Matching	Top CTE 14 ppm/℃ (FR4) vs bottom 20 ppm/℃ (PI), < 5 μm/100℃ thermal delta
4. Thermal Management	Dual Thermal Path	Top: Embedded Cu pillars (>400 W/mK); Bottom: Thermal adhesive + metal core (>8 W/mK)
	Thermal Isolation	Low-λ PI (0.1 W/mK) under high-power zones
5. Reliability	Delamination Resistance	> 1.2 N/mm peel strength at interfaces (vs 0.8 N/mm standard)
	Extreme Temp Survival	−196 ℃ (LN₂) ~ +260 ℃ (reflow), 1000 cycles zero failure
	Chemical Proof	Parylene encapsulation on bottom (resists acid/alkali/bio-fluids)
